ST614TCB Series
Current Sense Transformers

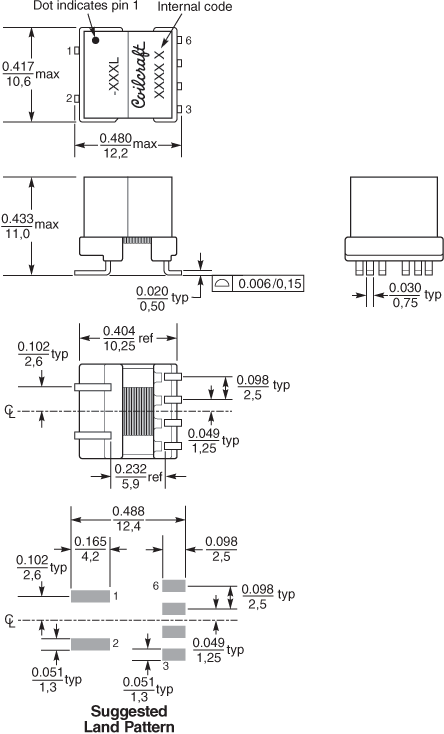

ST614TCB Series designed for use from 1.18 kHz up to 1 MHz and above to sense continuous currents to 28 Amps.
- 3000 Vrms, one minute isolation (hipot) between windings.
- 3.6 mm creepage and clearances.
- UL Class 180 (H) insulating materials.
- Tin-silver (96.5/3.5) over tin over nickel over copper terminations.
Specifications
Electrical specifications at 25°C.
| Part number 1 |
Inductance min (mH) 2 |
DCR max (Ω) | Turns Ratio |
Volt-time product (V-µs) 3 |
Frequency (kHz) 4 | Sensed current max (A) 5 |
Terminating resistance RT (Ω) 6 |
Isolation Voltage (Vrms) |
|
|---|---|---|---|---|---|---|---|---|---|
| pri (Ω) | sec (mΩ) | Pri1 : Sec1 | |||||||
| ST614TCB1050LZ | 1.7 | 0.0015 | 650 | 1 : 50 | 106 | 33 — >1000 | 28.0 | 1.8 | 3000 |
| ST614TCB1070LZ | 3.0 | 0.0015 | 1380 | 1 : 70 | 148.4 | 24 — >1000 | 28.0 | 2.5 | 3000 |
| ST614TCB1100LZ | 7.0 | 0.0015 | 2790 | 1 : 100 | 212 | 17 — >1000 | 28.0 | 3.6 | 3000 |
| ST614TCB1125LZ | 11 | 0.0015 | 4850 | 1 : 125 | 265 | 13 — >1000 | 28.0 | 4.5 | 3000 |
| ST614TCB1200LZ | 32 | 0.0015 | 10420 | 1 : 200 | 424 | 11 — >1000 | 28.0 | 7.1 | 3000 |
Notes
- When ordering, please specify termination and screening codes: e.g. ST614TCB1200LZ.
- Inductance measured between secondary pins at 100 kHz, 0.1 Vrms, 0 Adc.
- Volt-time product is for the secondary, between pin 4 and 5.
- For specific questions regarding frequency range, please contact us at [email protected].
- Primary current of 28 A causes less than 40°C temperature rise from 25°C ambient. Higher current causes a greater temperature rise (see Temperature Rise vs Current curve).
- Terminating resistance (RT) value is based on 1 Volt output with 28 Amps flowing through the primary. Varying terminating resistance increases or decreases output Voltage/Ampere according to the following equation: RT = Vout × Nsec/Iin.
Termination:
- L = Tin-silver (96.5/3.5) over tin over nickel over copper
- S = Tin-lead (63/37) over tin over nickel over copper
- T = Tin-silver-copper (95.5/4/0.5) over tin over nickel over copper
Screening:
- Z = Unscreened
- H = Coilcraft CP-SA-10001 Group A
- Screening performed to the document’s latest revision.
- Lot qualification (Group B) available.
- Custom testing also available.
Environmental
Environmental:
RoHS compliant
Ambient temperature range:
–40°C to +125°C.
Storage temperature range:
Component: –55°C to +165°C.
Tape and reel Packaging: –55°C to +80°C.
Tape and reel Packaging: –55°C to +80°C.
Maximum part temperature:
+165°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves
Temperature Rise vs Current
Schematics
General specification
Core Material:
Ferrite
Weight:
2.6 g
Packaging:
350/13″ reel; Plastic tape: 24 mm wide, 0.5 mm thick, 16 mm pocket spacing, 11.6 mm pocket depth.
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
PCB Washing:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
