AR336FRB Series
Common Mode Chokes for Critical Applications
AR336FRB Series designed for high-speed USB 3.0, HDMI, SATA, IEEE1394 and LVDS applications.
- For noise suppression in super high speed signal lines: USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.; and in high speed differential signal lines: USB 2.0, IEEE1394, LVDS, etc.
- Suitable for USB-type C specification 1.0
- Up to 6 GHz differential mode 3 dB cutoff frequency; up to 30 dB common mode noise attenuation in GHz range
- Passes NASA low outgassing specifications
Specifications
Electrical specifications at 25°C.
| Part number 1 | Lines |
Common mode peak impedance (kΩ) |
Cutoff frequency (GHz) 2 |
Common mode attenuation typ (dB) |
Inductance min (nH) 3 |
Irms (mA) | DCR max (Ω) 4 |
Isolation Voltage (Vrms) 5 |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 MHz | 100 MHz | 500 MHz | ||||||||
| AR336FRB421MPZ | 2 | 0.14 @ 3.0 GHz | 6.6 | 0.5 | 4.6 | 6.9 | 28 | 500 | 0.110 | 250 |
| AR336FRB901MPZ | 2 | 0.30 @ 3.0 GHz | 5.8 | 2.1 | 9.1 | 11.8 | 60 | 430 | 0.140 | 250 |
| AR336FRB172MPZ | 2 | 0.52 @ 2.5 GHz | 3.3 | 4.0 | 12.8 | 15.7 | 101 | 340 | 0.220 | 250 |
| AR336FRB262MPZ | 2 | 0.69 @ 2.0 GHz | 2.4 | 5.7 | 15.4 | 18.5 | 165 | 330 | 0.235 | 250 |
| AR336FRB372MPZ | 2 | 0.93 @ 1.8 GHz | 1.4 | 5.8 | 18.1 | 22.3 | 241 | 310 | 0.270 | 250 |
| AR336FRB502MPZ | 2 | 1.22 @ 1.5 GHz | 0.93 | 11.2 | 21.6 | 25.2 | 315 | 280 | 0.320 | 250 |
| AR336FRB672MPZ | 2 | 1.65 @ 1.2 GHz | 0.69 | 11.3 | 23.3 | 27.7 | 434 | 260 | 0.370 | 250 |
| AR336FRB902MPZ | 2 | 1.91 @ 1.0 GHz | 0.73 | 12.6 | 25.4 | 30.0 | 560 | 200 | 0.630 | 250 |
Notes
- When ordering, please specify termination and testing codes: e.g. AR336FRB902MPZ.
- Frequency at which the differential mode attenuation equals 3 dB.
- Inductance measured at 100 MHz using an Agilent/HP 4286A impedance analyzer and a Coilcraft SMD-A fixture.
- DCR is specified per winding.
- Winding to winding isolation (hipot) tested for one minute.
Termination:
- P = Tin-lead (63/37) over tin over nickel over silver-palladium-glass frit.
- R = Tin over nickel over silver-palladium-glass frit. Not suitable for applications or screening with pure tin restrictions.
Testing:
- Z = Unscreened
- H = Coilcraft CP-SA-10001 Group A
- G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
- D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
- F = ESCC3201 (F4 operational life performed at 90°C)
- 1 = EEE-INST-002 (Family 1) Level 1
- 2 = EEE-INST-002 (Family 1) Level 2
- 3 = EEE-INST-002 (Family 1) Level 3
- 4 = MIL-STD-981 (Family 11) Class B
- 5 = MIL-STD-981 (Family 11) Class S
- Screening performed to the document’s latest revision.
- Lot qualification (Group B) available.
Environmental
Ambient temperature range:
–40°C to +125°C with Irms current.
Storage temperature range:
Component: –55°C to +140°C.
Tape and reel packaging: –55°C to +80°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+140°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves
Typical Attenuation vs Frequency
Typical Impedance vs Frequency
Schematics

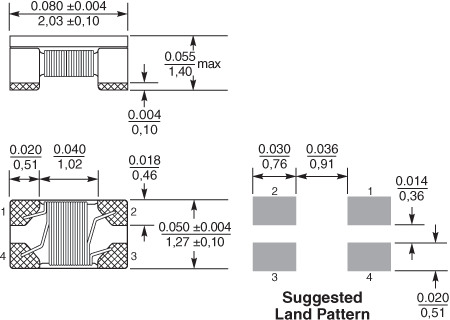

Physical characteristics
Note: Dimensions are before solder application. For maximum overall dimensions including solder, add 0.003 in / 0.076 mm to the maximum length, width and height.
General specification
Core Material:
Ferrite
Weight:
14.6 – 15.6 mg
Winding to Winding Isolation:
250 Vrms
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
