AE63xPTA-AE64xPTA Series
Outgassing Compliant Power Inductors
AE63xPTA, AE64xPTA Series feature high temperature materials allowing operation in ambient temperatures up to 155°C.
- Passes NASA low outgassing specifications.
- Tin-lead (Sn-Pb) terminations for the best possible board adhesion.
- Designed for high current power supply applications.
- Flat wire windings provide exceptionally low DCR.
- Isat ratings as high as 100 A.
- Tin-lead over copper terminations.
Specifications
Electrical specifications at 25°C.
AE630PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE630PTA301MSZ | 0.30 | 0.630 | 0.740 | 127 | 205 | 100 | 41 | 54 |
| AE630PTA501MSZ | 0.50 | 0.630 | 0.740 | 80 | 116 | 60 | 41 | 54 |
| AE630PTA601MSZ | 0.60 | 0.630 | 0.740 | 80 | 116 | 49 | 41 | 54 |
| AE630PTA681MSZ | 0.68 | 0.630 | 0.740 | 67 | 97 | 45 | 41 | 54 |
| AE630PTA801MSZ | 0.80 | 0.630 | 0.740 | 57 | 82 | 38 | 41 | 54 |
| AE630PTA901MSZ | 0.90 | 0.630 | 0.740 | 52 | 77 | 33 | 41 | 54 |
| AE630PTA102MSZ | 1.00 | 0.630 | 0.740 | 44 | 64 | 29 | 41 | 54 |
| AE630PTA122MSZ | 1.20 | 0.630 | 0.740 | 37 | 51 | 28 | 41 | 54 |
| AE630PTA202MSZ | 2.00 | 0.630 | 0.740 | 21 | 31 | 16 | 41 | 54 |
AE632PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE632PTA301MSZ | 0.30 | 0.900 | 1.000 | 101 | 151 | 100 | 36 | 45 |
| AE632PTA501MSZ | 0.50 | 0.900 | 1.000 | 73 | 102 | 81 | 36 | 45 |
| AE632PTA601MSZ | 0.60 | 0.900 | 1.000 | 67 | 95 | 70 | 36 | 45 |
| AE632PTA681MSZ | 0.68 | 0.900 | 1.000 | 64 | 90 | 62 | 36 | 45 |
| AE632PTA801MSZ | 0.80 | 0.900 | 1.000 | 64 | 90 | 53 | 36 | 45 |
| AE632PTA901MSZ | 0.90 | 0.900 | 1.000 | 53 | 74 | 48 | 36 | 45 |
| AE632PTA102MSZ | 1.00 | 0.900 | 1.000 | 52 | 72 | 42 | 36 | 45 |
| AE632PTA122MSZ | 1.20 | 0.900 | 1.000 | 46 | 62 | 37 | 36 | 45 |
| AE632PTA202MSZ | 2.00 | 0.900 | 1.000 | 32 | 44 | 27 | 36 | 45 |
AE637PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE637PTA501MSZ | 0.50 | 1.200 | 1.340 | 88 | 117 | 100 | 30 | 40 |
| AE637PTA601MSZ | 0.60 | 1.200 | 1.340 | 83 | 107 | 90 | 30 | 40 |
| AE637PTA681MSZ | 0.68 | 1.200 | 1.340 | 75 | 97 | 78 | 30 | 40 |
| AE637PTA801MSZ | 0.80 | 1.200 | 1.340 | 68 | 88 | 70 | 30 | 40 |
| AE637PTA901MSZ | 0.90 | 1.200 | 1.340 | 62 | 82 | 62 | 30 | 40 |
| AE637PTA102MSZ | 1.00 | 1.200 | 1.340 | 54 | 69 | 56 | 30 | 40 |
| AE637PTA122MSZ | 1.20 | 1.200 | 1.340 | 52 | 67 | 49 | 30 | 40 |
| AE637PTA202MSZ | 2.00 | 1.200 | 1.340 | 39 | 56 | 37 | 30 | 40 |
AE641PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE641PTA601MSZ | 0.60 | 1.440 | 1.600 | 80 | 115 | 97 | 25 | 35 |
| AE641PTA681MSZ | 0.68 | 1.440 | 1.600 | 72 | 103 | 85 | 25 | 35 |
| AE641PTA801MSZ | 0.80 | 1.440 | 1.600 | 64 | 91 | 75 | 25 | 35 |
| AE641PTA901MSZ | 0.90 | 1.440 | 1.600 | 60 | 85 | 69 | 25 | 35 |
| AE641PTA102MSZ | 1.00 | 1.440 | 1.600 | 53 | 75 | 64 | 25 | 35 |
| AE641PTA122MSZ | 1.20 | 1.440 | 1.600 | 51 | 73 | 54 | 25 | 35 |
| AE641PTA202MSZ | 2.00 | 1.440 | 1.600 | 36 | 51 | 35 | 25 | 35 |
AE645PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE645PTA681MSZ | 0.68 | 1.700 | 1.820 | 73 | 104 | 98 | 23 | 30 |
| AE645PTA801MSZ | 0.80 | 1.700 | 1.820 | 69 | 94 | 85 | 23 | 30 |
| AE645PTA901MSZ | 0.90 | 1.700 | 1.820 | 67 | 87 | 73 | 23 | 30 |
| AE645PTA102MSZ | 1.00 | 1.700 | 1.820 | 62 | 82 | 68 | 23 | 30 |
| AE645PTA122MSZ | 1.20 | 1.700 | 1.820 | 57 | 82 | 58 | 23 | 30 |
| AE645PTA202MSZ | 2.00 | 1.700 | 1.820 | 43 | 61 | 40 | 23 | 30 |
| AE645PTA362MSZ | 3.60 | 1.700 | 1.820 | 27 | 38 | 25 | 23 | 30 |
| AE645PTA402MSZ | 4.00 | 1.700 | 1.820 | 25 | 35 | 20 | 23 | 30 |
| AE645PTA472MSZ | 4.70 | 1.700 | 1.820 | 21 | 30 | 18 | 23 | 30 |
AE648PTA Series
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE648PTA801MSZ | 0.80 | 1.940 | 2.150 | 68 | 90 | 98 | 21 | 27 |
| AE648PTA901MSZ | 0.90 | 1.940 | 2.150 | 64 | 86 | 87 | 21 | 27 |
| AE648PTA102MSZ | 1.00 | 1.940 | 2.150 | 53 | 78 | 70 | 21 | 27 |
| AE648PTA122MSZ | 1.20 | 1.940 | 2.150 | 52 | 71 | 63 | 21 | 27 |
| AE648PTA202MSZ | 2.00 | 1.940 | 2.150 | 41 | 53 | 45 | 21 | 27 |
| AE648PTA402MSZ | 4.00 | 1.940 | 2.150 | 25 | 36 | 25 | 21 | 27 |
Notes
- When ordering, please specify screening code: AE648PTA472MSZ.
- Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
- DCR measured on a Keithley 580 micro-ohmmeter.
- SRF measured using an Agilent E5061 network analyzer and impedance option using fixture CCF1592 with mask 297A1751 and shim 297A1765.
- DC current at which the inductance drops 10% (typ) from its value without current.
- Current that causes the specified temperature rise from 25°C ambient. When Irms is greater than Isat, Isat is the more critical specification, and Irms is shown in gray type. See Temperature Rise vs Current curve below.
Screening:
- Z = Unscreened
- Y = Unscreened (SLDC Option A)
- W = Unscreened (SLDC Option B)
- H = Coilcraft CP-SA-10001 Group A
- G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
- D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
- 1 = EEE-INST-002 (Family 1) Level 1
- 2 = EEE-INST-002 (Family 1) Level 2
- 3 = EEE-INST-002 (Family 1) Level 3
- 4 = MIL-STD-981 (Family 04) Class B
- 5 = MIL-STD-981 (Family 04) Class S
- F = ESCC3201 (F4 operational life performed at 105°C)
- Screening performed to the document’s latest revision.
- Lot qualification (Group B) available.
- Testing T and U have been replaced with more detailed codes 4, 5, and 1, 2, 3, respectively. Codes T and U can still be used, if necessary. Custom testing also available.
- Country of origin restrictions available; prefix option G.
Environmental
Ambient temperature range:
–55°C to +105°C with Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves
Temperature Rise vs Current
L vs Frequency – AE630PTA Series
L vs Current – AE630PTA Series
L vs Frequency – AE632PTA Series
L vs Current – AE632PTA Series
L vs Frequency – AE637PTA Series
L vs Current – AE637PTA Series
L vs Frequency – AE641PTA Series
L vs Current – AE641PTA Series
L vs Frequency – AE645PTA Series
L vs Current – AE645PTA Series
L vs Frequency – AE648PTA Series
L vs Current – AE648PTA Series

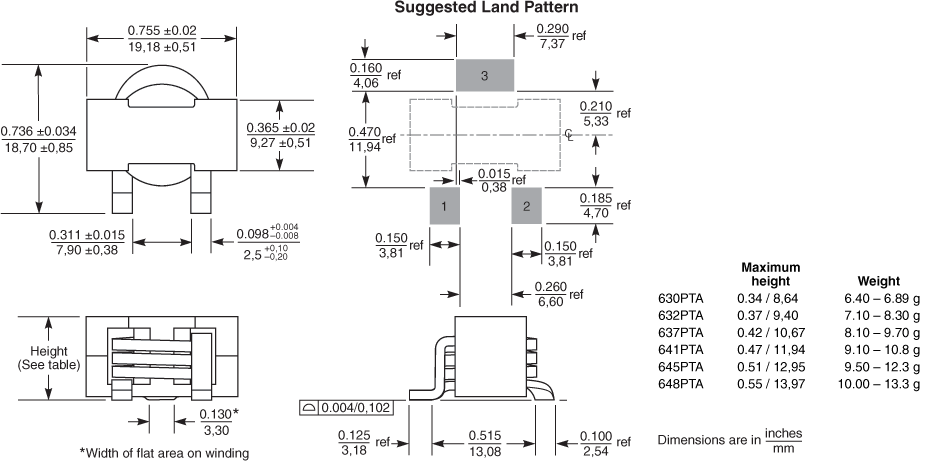

General specification
Core Material:
Ferrite
Weight:
AE630PTA: 6.40 – 6.89 g; AE632PTA: 7.10 – 8.30 g; AE637PTA: 8.10 – 9.70 g; AE641PTA: 9.10 – 10.8 g; AE645PTA : 9.5 – 12.3 g; AE648PTA: 10.0 – 13.3 g.
Packaging:
AE630PTA: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 9.25 pocket depth.
AE632PTA: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 10.5 pocket depth.
AE637PTA: 170 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 11.6 pocket depth.
AE641PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 13.0 pocket depth.
AE645PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 14.0 pocket depth.
AE648PTA: 125 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 15.0 pocket depth.
AE632PTA: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 10.5 pocket depth.
AE637PTA: 170 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 11.6 pocket depth.
AE641PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 13.0 pocket depth.
AE645PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 14.0 pocket depth.
AE648PTA: 125 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 15.0 pocket depth.
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
