Close up of MS63xPTA-MS64xPTA
Datasheet 3D Models

MS63xPTA-MS64xPTA Series

High Reliability Power Inductors

MS63xPTA, MS64xPTA Series feature high temperature materials allowing operation in ambient temperatures up to 155°C.
  • Tin-lead (Sn-Pb) termination for the best possible board adhesion.
  • Designed for high current power supply applications.
  • Flat wire windings provide exceptionally low DCR.
  • Isat ratings as high as 100 A.
  • Tin-lead over copper terminations.

Request Quote:
Find my part
;

Specifications

Electrical specifications at 25°C.

MS630PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS630PTA301MSZ 0.30 0.630 0.740 127 205 100 41 54
MS630PTA501MSZ 0.50 0.630 0.740 80 116 60 41 54
MS630PTA601MSZ 0.60 0.630 0.740 80 116 49 41 54
MS630PTA681MSZ 0.68 0.630 0.740 67 97 45 41 54
MS630PTA801MSZ 0.80 0.630 0.740 57 82 38 41 54
MS630PTA901MSZ 0.90 0.630 0.740 52 77 33 41 54
MS630PTA102MSZ 1.0 0.630 0.740 44 64 29 41 54
MS630PTA122MSZ 1.2 0.630 0.740 37 51 28 41 54
MS630PTA202MSZ 2.0 0.630 0.740 21 31 16 41 54

MS632PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS632PTA301MSZ 0.30 0.900 1.000 101 151 100 36 45
MS632PTA501MSZ 0.50 0.900 1.000 73 102 81 36 45
MS632PTA601MSZ 0.60 0.900 1.000 67 95 70 36 45
MS632PTA681MSZ 0.68 0.900 1.000 64 90 62 36 45
MS632PTA801MSZ 0.80 0.900 1.000 64 90 53 36 45
MS632PTA901MSZ 0.90 0.900 1.000 53 74 48 36 45
MS632PTA102MSZ 1.0 0.900 1.000 52 72 42 36 45
MS632PTA122MSZ 1.2 0.900 1.000 46 62 37 36 45
MS632PTA202MSZ 2.0 0.900 1.000 32 44 27 36 45

MS637PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS637PTA501MSZ 0.50 1.200 1.340 88 117 100 30 40
MS637PTA601MSZ 0.60 1.200 1.340 83 107 90 30 40
MS637PTA681MSZ 0.68 1.200 1.340 75 97 78 30 40
MS637PTA801MSZ 0.80 1.200 1.340 68 88 70 30 40
MS637PTA901MSZ 0.90 1.200 1.340 62 82 62 30 40
MS637PTA102MSZ 1.0 1.200 1.340 54 69 56 30 40
MS637PTA122MSZ 1.2 1.200 1.340 52 67 49 30 40
MS637PTA202MSZ 2.0 1.200 1.340 39 56 37 30 40

MS641PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS641PTA601MSZ 0.60 1.440 1.600 80 115 97 25 35
MS641PTA681MSZ 0.68 1.440 1.600 72 103 85 25 35
MS641PTA801MSZ 0.80 1.440 1.600 64 91 75 25 35
MS641PTA901MSZ 0.90 1.440 1.600 60 85 69 25 35
MS641PTA102MSZ 1.0 1.440 1.600 53 75 64 25 35
MS641PTA122MSZ 1.2 1.440 1.600 51 73 54 25 35
MS641PTA202MSZ 2.0 1.440 1.600 36 51 35 25 35

MS645PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS645PTA681MSZ 0.68 1.700 1.820 73 104 98 23 30
MS645PTA801MSZ 0.80 1.700 1.820 69 94 85 23 30
MS645PTA901MSZ 0.90 1.700 1.820 67 87 73 23 30
MS645PTA102MSZ 1.0 1.700 1.820 62 82 68 23 30
MS645PTA122MSZ 1.2 1.700 1.820 57 82 58 23 30
MS645PTA202MSZ 2.0 1.700 1.820 43 61 40 23 30
MS645PTA362MSZ 3.6 1.700 1.820 27 38 25 23 30
MS645PTA402MSZ 4.0 1.700 1.820 25 35 20 23 30
MS645PTA472MSZ 4.7 1.700 1.820 21 30 18 23 30

MS648PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
MS648PTA801MSZ 0.80 1.940 2.150 68 90 98 21 27
MS648PTA901MSZ 0.90 1.940 2.150 64 86 87 21 27
MS648PTA102MSZ 1.0 1.940 2.150 53 78 70 21 27
MS648PTA122MSZ 1.2 1.940 2.150 52 71 63 21 27
MS648PTA202MSZ 2.0 1.940 2.150 41 53 45 21 27
MS648PTA402MSZ 4.0 1.940 2.150 25 36 25 21 27
Notes
  1. When ordering, please specify screening code: e.g. MS648PTA472MSZ.
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured on a Keithley 580 micro-ohmmeter.
  4. SRF measured using an Agilent E5061 network analyzer and impedance option using fixture CCF1592 with mask 297A1751 and shim 297A1765.
  5. DC current at 25°C that causes a 10% (typ) inductance drop from its value without current.
  6. Current that causes the specified temperature rise from 25°C ambient. When Irms is greater than Isat, Isat is the more critical specification, and Irms is shown in gray type. See Temperature Rise vs Current curve below. This information is for reference only and does not represent absolute maximum ratings.

Screening:

  • Z = Unscreened
  • Y = Unscreened (SLDC Option A)
  • W = Unscreened (SLDC Option B)
  • H = Coilcraft CP-SA-10001 Group A
  • G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
  • D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
  • 1 = EEE-INST-002 (Family 1) Level 1
  • 2 = EEE-INST-002 (Family 1) Level 2
  • 3 = EEE-INST-002 (Family 1) Level 3
  • 4 = MIL-STD-981 (Family 04) Class B
  • 5 = MIL-STD-981 (Family 04) Class S
  • F = ESCC3201 (F4 operational life performed at 105°C)
  • Screening performed to the document’s latest revision.
  • Lot qualification (Group B) available.
  • Testing T and U have been replaced with more detailed codes 4, 5, and 1, 2, 3, respectively. Codes T and U can still be used, if necessary. Custom testing also available.
  • Country of origin restrictions available; prefix options G or F.
Environmental
Ambient temperature range:
–55°C to +105°C with Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
See FIT/MTBF Calculations

Performance curves

L vs Frequency - MS630PTA Series

L vs Frequency - MS630PTA Series

L vs Current- MS630PTA Series

L vs Current- MS630PTA Series

L vs Frequency - MS632PTA Series

L vs Frequency - MS632PTA Series

L vs Current - MS632PTA Series

L vs Current - MS632PTA Series

L vs Frequency - MS637PTA Series

L vs Frequency - MS637PTA Series

L vs Current - MS637PTA Series

L vs Current - MS637PTA Series

L vs Frequency - MS641PTA Series

L vs Frequency - MS641PTA Series

L vs Current - MS641PTA Series

L vs Current - MS641PTA Series

L vs Frequency - MS645PTA Series

L vs Frequency - MS645PTA Series

L vs Current - MS645PTA Series

L vs Current - MS645PTA Series

L vs Frequency - MS648PTA Series

L vs Frequency - MS648PTA Series

L vs Current - MS648PTA Series

L vs Current - MS648PTA Series

Temperature Rise vs Current

Temperature Rise vs Current

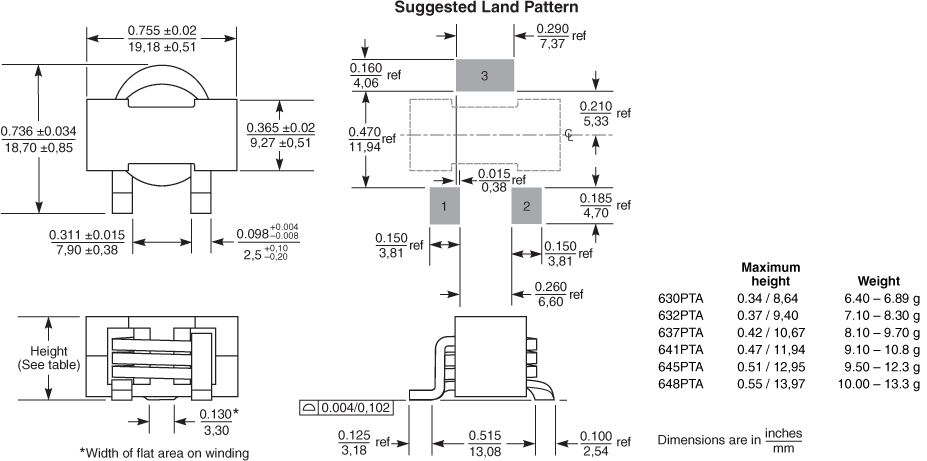

Physical characteristics


General specification

Core Material:
Ferrite
Weight:
MS630PTA: 6.40 – 6.89 g; MS632PTA: 7.10 – 8.30 g; MS637PTA: 8.10 – 9.70 g; MS641PTA: 9.10 – 10.8 g; MS645PTA : 9.5 – 12.3 g; MS648PTA: 10.0 – 13.3 g.
Packaging:
MS630PTA 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 9.25 pocket depth.
MS632PTA 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 10.5 pocket depth.
MS637PTA 170 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 11.6 pocket depth.
MS641PTA 150 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 13.0 pocket depth.
MS645PTA 150 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 14.0 pocket depth.
MS648PTA 125 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 15.0 pocket depth.

Soldering/Washing

Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
PCB Washing:
Only pure water or alcohol recommended.
