MS390PZA Series
High Reliability Power Inductors
MS390PZA Series features high temperature materials allowing operation in ambient temperatures up to 155°C.
- Tin-lead (Sn-Pb) termination for the best possible board adhesion.
- Low profile, ultra-miniature, shielded power inductor.
- Soft saturation makes them ideal for VRM/VRD applications.
- Tin-lead (63/37) over tin over nickel over silver terminations.
Specifications
Electrical specifications at 25°C.
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 10% drop | 20% drop | 30% drop | 20°C rise | 40°C rise | ||
| MS390PZA601MSZ | 0.60 | 30 | 33 | 144 | 180 | 1.8 | 2.4 | 2.7 | 1.8 | 2.5 |
| MS390PZA102MSZ | 1.0 | 43 | 49 | 102 | 128 | 1.5 | 2.1 | 2.4 | 1.6 | 2.3 |
| MS390PZA152MSZ | 1.5 | 71 | 80 | 77 | 97 | 1.2 | 1.6 | 1.9 | 1.4 | 1.9 |
| MS390PZA222MSZ | 2.2 | 111 | 122 | 62 | 78 | 0.94 | 1.2 | 1.5 | 1.0 | 1.3 |
| MS390PZA332MSZ | 3.3 | 154 | 166 | 51 | 64 | 0.86 | 1.1 | 1.3 | 0.88 | 1.2 |
| MS390PZA472MSZ | 4.7 | 217 | 230 | 45 | 57 | 0.71 | 0.97 | 1.1 | 0.84 | 1.1 |
Notes
- When ordering, please specify screening code: e.g. MS390PZA222MSZ.
- Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
- DCR measured on a micro-ohmmeter.
- SRF measured using Agilent/HP 4395A or equivalent.
- DC current at 25°C that causes the specified inductance drop from its value without current.
- Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Screening:
- Z = Unscreened
- Y = Unscreened (SLDC Option A)
- W = Unscreened (SLDC Option B)
- H = Group A screening per Coilcraft CP-SA-10001
- G= Coilcraft CP-SA-10001 Group A (SLDC Option A)
- D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
Environmental
Ambient temperature range:
–55°C to +105°C with Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves
L vs Frequency
L vs Current

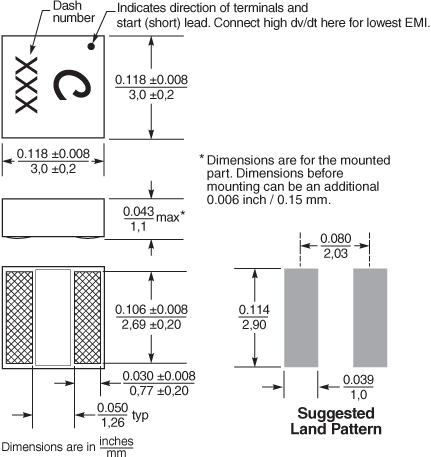

General specification
Core Material:
Composite
Weight:
44 mg
Packaging:
2000/7′′ reel Plastic tape: 8 mm wide, 0.23 mm thick, 4 mm pocket spacing, 1.14 mm pocket depth.
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
