ML410PZA Series

High Reliability Power Inductors

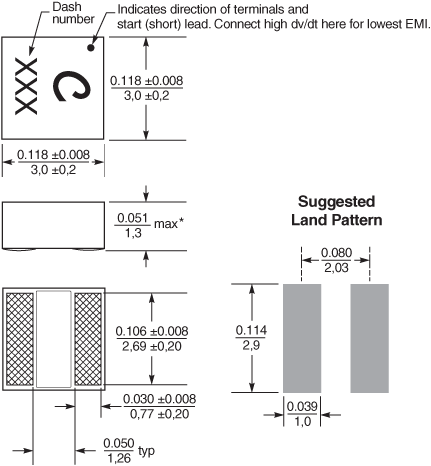

ML410PZA Series features soft saturation making them ideal for VRM/VRD applications.

Request Quote:

Part number

Find my part

;

Electrical specifications at 25°C.

Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	DCR (mΩ) 3		SRF (MHz) 4		Isat (A) 5			Irms (A) 6
Part number 1	Inductance (µH) 2 (Tolerance: ±20%)	typ	max	min	typ	10% drop	20% drop	30% drop	20°C rise	40°C rise
ML410PZA331MLZ	0.33	23	27	234	293	2.3	3.0	3.4	2.6	3.5
ML410PZA361MLZ	0.36	19	23	168	210	2.3	3.1	3.5	2.2	3.0
ML410PZA561MLZ	0.56	28	32	162	203	1.8	2.5	2.9	2.2	3.0
ML410PZA601MLZ	0.61	23	29	134	167	1.9	2.6	3.0	2.1	2.8
ML410PZA681MLZ	0.68	34	40	131	164	1.6	2.2	2.7	2.1	2.8
ML410PZA102MLZ	1.0	39	46	92.0	115	1.4	1.9	2.3	1.9	2.6
ML410PZA152MLZ	1.5	60	72	75.5	94.4	1.3	1.8	2.2	1.6	2.2
ML410PZA222MLZ	2.2	81	97	58.6	73.2	1.0	1.3	1.6	1.4	1.9
ML410PZA332MLZ	3.3	106	127	234	61.6	0.87	1.2	1.4	1.2	1.6
ML410PZA472MLZ	4.7	143	171	42.1	52.6	0.72	1.0	1.2	1.0	1.4
ML410PZA682MLZ	6.8	166	200	31.9	39.9	0.61	0.84	0.97	0.94	1.3
ML410PZA103MLZ	10	255	306	27.7	34.6	0.50	0.65	0.74	0.90	1.2
ML410PZA153MLZ	15	394	483	20.6	25.8	0.43	0.58	0.65	0.74	1.0
ML410PZA223MLZ	22	608	630	17.8	22.2	0.32	0.45	0.52	0.58	0.80
ML410PZA333MLZ	33	855	896	13.3	16.6	0.23	0.32	0.38	0.42	0.57
ML410PZA393MLZ	39	919	985	12.7	15.9	0.23	0.32	0.37	0.39	0.54
ML410PZA473MLZ	47	1220	1320	11.0	13.7	0.21	0.28	0.32	0.33	0.46
ML410PZA563MLZ	56	1430	1520	9.7	12.1	0.19	0.26	0.30	0.37	0.51
ML410PZA683MLZ	68	2160	2370	8.7	10.9	0.16	0.21	0.25	0.31	0.42
ML410PZA823MLZ	82	2300	2440	8.6	10.8	0.15	0.21	0.24	0.26	0.34
ML410PZA104MLZ	100	2630	3000	7.5	9.4	0.17	0.24	0.28	0.29	0.39
ML410PZA224MLZ	220	6830	8000	4.9	6.1	0.090	0.14	0.16	0.17	0.23

Notes

When ordering, please specify screening code: e.g. ML410PZA224MLZ.
Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
DCR measured on a micro-ohmmeter.
SRF measured using Agilent/HP 4395A or equivalent.
DC current at 25°C that causes the specified inductance drop from its value without current.
Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
