AE624PYA Series
Shielded Power Inductors
AE624PYA Series features high temperature materials allowing operation in ambient temperatures up to 155°C.
- High current; very low DCR.
- Passes NASA low outgassing specifications.
- Soft saturation makes them ideal for VRM/VRD applications.
- Passes vibration testing to 30 G and shock testing to 100 G.
- Special coating ensures DWV compliance with MIL-STD-981 screening.
- Tin-lead (63/37) over copper terminations.
Specifications
Electrical specifications at 25°C.
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±20%) |
DCR (mΩ) 3 | SRF (MHz) 4 | Isat (A) 5 | Irms (A) 6 | |||
|---|---|---|---|---|---|---|---|---|
| typ | max | min | typ | 20°C rise | 40°C rise | |||
| AE624PYA472MSZ | 4.7 | 3.4 | 3.8 | 12.7 | 10.1 | 39.0 | 18.7 | 21.7 |
| AE624PYA682MSZ | 6.8 | 4.2 | 4.6 | 11.5 | 9.2 | 36.0 | 14.2 | 19.5 |
| AE624PYA822MSZ | 8.2 | 6.0 | 7.5 | 10.8 | 8.6 | 30.0 | 13.5 | 18.0 |
| AE624PYA103MSZ | 10 | 6.8 | 9.0 | 10.1 | 8.0 | 26.3 | 12.0 | 16.5 |
| AE624PYA153MSZ | 15 | 9.2 | 12.4 | 8.0 | 6.4 | 23.0 | 9.7 | 13.5 |
| AE624PYA223MSZ | 22 | 14.5 | 16.0 | 6.3 | 5.0 | 18.7 | 7.8 | 10.5 |
| AE624PYA333MSZ | 33 | 18.7 | 20.0 | 5.8 | 4.6 | 16.7 | 6.4 | 9.0 |
Notes
- When ordering, please specify screening code: e.g. AE624PYA333MSZ.
- Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
- DCR measured on a micro-ohmmeter.
- SRF measured using Agilent/HP 4395A or equivalent.
- DC current at 25°C that causes an inductance drop of 30% (typ) from its value without current.
- Current that causes the specified temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Note:
Irms testing was performed on a 0.060″ thick pcb with 4 oz. copper traces optimized to minimize additional temperature rise. Temperature rise is highly dependent on many factors including pcb land pattern, trace size, and proximity to other components. Therefore temperature rise should be verified in application conditions.
Screening:
- Z = Unscreened
- Y = Unscreened (SLDC Option A)
- W = Unscreened (SLDC Option B)
- H = Coilcraft CP-SA-10001 Group A
- G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
- D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
- 1 = EEE-INST-002 (Family 1) Level 1
- 2 = EEE-INST-002 (Family 1) Level 2
- 3 = EEE-INST-002 (Family 1) Level 3
- 4 = MIL-STD-981 (Family 04) Class B
- 5 = MIL-STD-981 (Family 04) Class S
- F = ESCC3201 (F4 operational life performed at 105°C)
- Screening performed to the document’s latest revision.
- Lot qualification (Group B) available.
- Testing T and U have been replaced with more detailed codes 4, 5, and 1, 2, 3, respectively. Codes T and U can still be used, if necessary. Custom testing also available.
- Country of origin restrictions available; prefix option G.
- SLDC is limited to 1000 pcs lots.
Environmental
Ambient temperature range:
–55°C to +105°C with (40°C rise) Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves
L vs Frequency
L vs Current

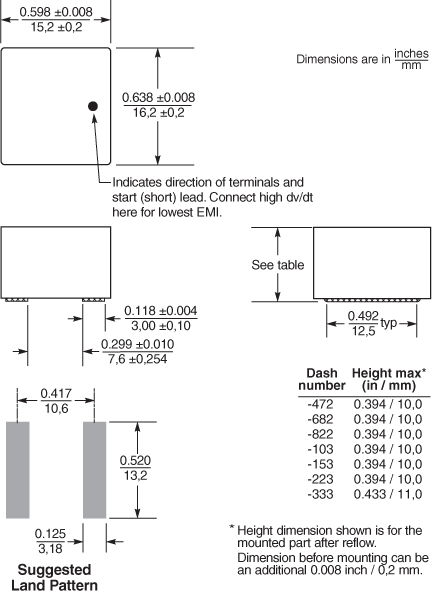

General specification
Core Material:
Composite
Weight:
12.4 – 15.5 g
Packaging:
150/13″ reel Plastic tape: 32 mm wide, 0.3 mm thick, 24 mm pocket spacing, 10.26 mm pocket depth (all except -333) 11.26 mm pocket depth (-333 only).
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
PCB Washing:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
