Close up of ML63xPTA-ML64xPTA
Datasheet 3D Models

ML63xPTA-ML64xPTA Series

High Reliability Power Inductors

ML63xPTA, ML64xPTA Series feature high temperature materials allowing operation in ambient temperatures up to 155°C.
  • Designed for high current power supply applications.
  • Flat wire windings provide exceptionally low DCR.
  • Isat ratings as high as 100 A.
  • Tin-silver over copper terminations.

Request Quote:
Find my part
;

Specifications

Electrical specifications at 25°C.

ML630PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML630PTA301MLZ 0.30 0.630 0.740 127 205 100 41 54
ML630PTA501MLZ 0.50 0.630 0.740 80 116 60 41 54
ML630PTA601MLZ 0.60 0.630 0.740 80 116 49 41 54
ML630PTA681MLZ 0.68 0.630 0.740 67 97 45 41 54
ML630PTA801MLZ 0.80 0.630 0.740 57 82 38 41 54
ML630PTA901MLZ 0.90 0.630 0.740 52 77 33 41 54
ML630PTA102MLZ 1.0 0.630 0.740 44 64 29 41 54
ML630PTA122MLZ 1.2 0.630 0.740 37 51 28 41 54
ML630PTA202MLZ 2.0 0.630 0.740 21 31 16 41 54

ML632PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML632PTA301MLZ 0.30 0.900 1.000 101 151 100 36 45
ML632PTA501MLZ 0.50 0.900 1.000 73 102 81 36 45
ML632PTA601MLZ 0.60 0.900 1.000 67 95 70 36 45
ML632PTA681MLZ 0.68 0.900 1.000 64 90 62 36 45
ML632PTA801MLZ 0.80 0.900 1.000 64 90 53 36 45
ML632PTA901MLZ 0.90 0.900 1.000 53 74 48 36 45
ML632PTA102MLZ 1.0 0.900 1.000 52 72 42 36 45
ML632PTA122MLZ 1.2 0.900 1.000 46 62 37 36 45
ML632PTA202MLZ 2.0 0.900 1.000 32 44 27 36 45

ML637PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML637PTA501MLZ 0.50 1.200 1.340 88 117 100 30 40
ML637PTA601MLZ 0.60 1.200 1.340 83 107 90 30 40
ML637PTA681MLZ 0.68 1.200 1.340 75 97 78 30 40
ML637PTA801MLZ 0.80 1.200 1.340 68 88 70 30 40
ML637PTA901MLZ 0.90 1.200 1.340 62 82 62 30 40
ML637PTA102MLZ 1.0 1.200 1.340 54 69 56 30 40
ML637PTA122MLZ 1.2 1.200 1.340 52 67 49 30 40
ML637PTA202MLZ 2.0 1.200 1.340 39 56 37 30 40

ML641PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML641PTA601MLZ 0.60 1.440 1.600 80 115 97 25 35
ML641PTA681MLZ 0.68 1.440 1.600 72 103 85 25 35
ML641PTA801MLZ 0.80 1.440 1.600 64 91 75 25 35
ML641PTA901MLZ 0.90 1.440 1.600 60 85 69 25 35
ML641PTA102MLZ 1.0 1.440 1.600 53 75 64 25 35
ML641PTA122MLZ 1.2 1.440 1.600 51 73 54 25 35
ML641PTA202MLZ 2.0 1.440 1.600 36 51 35 25 35

ML645PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML645PTA681MLZ 0.68 1.700 1.820 73 104 98 23 30
ML645PTA801MLZ 0.80 1.700 1.820 69 94 85 23 30
ML645PTA901MLZ 0.90 1.700 1.820 67 87 73 23 30
ML645PTA102MLZ 1.0 1.700 1.820 62 82 68 23 30
ML645PTA122MLZ 1.2 1.700 1.820 57 82 58 23 30
ML645PTA202MLZ 2.0 1.700 1.820 43 61 40 23 30
ML645PTA362MLZ 3.6 1.700 1.820 27 38 25 23 30
ML645PTA402MLZ 4.0 1.700 1.820 25 35 20 23 30
ML645PTA472MLZ 4.7 1.700 1.820 21 30 18 23 30

ML648PTA Series

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR (mΩ) 3 SRF (MHz) 4 Isat (A) 5 Irms (A) 6
typ max min typ 20°C rise 40°C rise
ML648PTA801MLZ 0.80 1.940 2.150 68 90 98 21 27
ML648PTA901MLZ 0.90 1.940 2.150 64 86 87 21 27
ML648PTA102MLZ 1.0 1.940 2.150 53 78 70 21 27
ML648PTA122MLZ 1.2 1.940 2.150 52 71 63 21 27
ML648PTA202MLZ 2.0 1.940 2.150 41 53 45 21 27
ML648PTA402MLZ 4.0 1.940 2.150 25 36 25 21 27
Notes
  1. When ordering, please specify screening code: e.g. ML648PTA472MLZ.
  2. Inductance measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4263B LCR meter or equivalent.
  3. DCR measured on a Keithley 580 micro-ohmmeter.
  4. SRF measured using an Agilent E5061 network analyzer and impedance option using fixture CCF1592 with mask 297A1751 and shim 297A1765.
  5. DC current at which the inductance drops 10% (typ) from its value without current.
  6. Current that causes the specified temperature rise from 25°C ambient. When Irms is greater than Isat, Isat is the more critical specification, and Irms is shown in gray type. See Temperature Rise vs Current curve below.

Screening:

  • Z = Unscreened
  • Y = Unscreened (SLDC Option A)
  • W = Unscreened (SLDC Option B)
  • H = Group A screening per Coilcraft CP-SA-10001
  • G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
  • D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
  • 1/2/3 = EEE-INST-002 (Family 1) Level 1/2/3
  • 4/5 = MIL-STD-981 (Family 04) Class B=4, Class S=5
  • F = Screening per ESCC 3201
  • Screening performed to the document’s latest revision.
  • Lot qualification (Group B) available.
  • Testing T and U have been replaced with more detailed codes 4, 5, and 1, 2, 3, respectively. Codes T and U can still be used, if necessary. Custom testing also available.
  • Country of origin restrictions available; prefix options G or F.
Environmental
Ambient temperature range:
–55°C to +105°C with Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
See FIT/MTBF Calculations

Performance curves

Temperature Rise vs Current

Temperature Rise vs Current

L vs Frequency - ML630PTA Series

L vs Frequency - ML630PTA Series

L vs Current - ML630PTA Series

L vs Current - ML630PTA Series

L vs Frequency - ML632PTA Series

L vs Frequency - ML632PTA Series

L vs Current - ML632PTA Series

L vs Current - ML632PTA Series

L vs Frequency - ML637PTA Series

L vs Frequency - ML637PTA Series

L vs Current - ML637PTA Series

L vs Current - ML637PTA Series

L vs Frequency - ML641PTA Series

L vs Frequency - ML641PTA Series

L vs Current - ML641PTA Series

L vs Current - ML641PTA Series

L vs Frequency - ML645PTA Series

L vs Frequency - ML645PTA Series

L vs Current - ML645PTA Series

L vs Current - ML645PTA Series

L vs Frequency - ML648PTA Series

L vs Frequency - ML648PTA Series

L vs Current - ML648PTA Series

L vs Current - ML648PTA Series

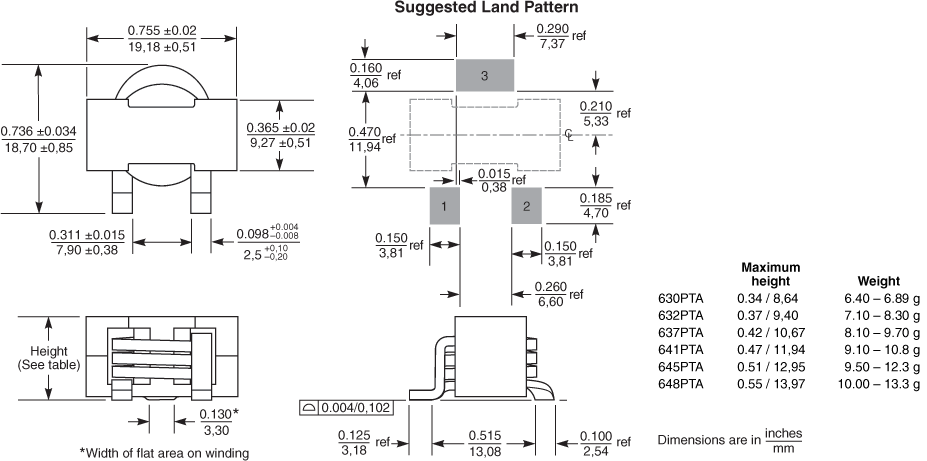

Physical characteristics


General specification

Core Material:
Ferrite
Weight:
ML630PTA: 6.40 – 6.89 g; ML632PTA: 7.10 – 8.30 g; ML637PTA: 8.10 – 9.70 g; ML641PTA: 9.10 – 10.8 g; ML645PTA : 9.5 – 12.3 g; ML648PTA: 10.0 – 13.3 g.
Packaging:
ML630PTA: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 9.25 pocket depth.
ML632PTA: 200 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 10.5 pocket depth.
ML637PTA: 170 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 11.6 pocket depth.
ML641PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.4 mm thick, 4 mm pocket spacing, 13.0 pocket depth.
ML645PTA: 150 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 14.0 pocket depth.
ML648PTA: 125 per 13″ reel; Plastic tape: 44 mm wide, 0.5 mm thick, 4 mm pocket spacing, 15.0 pocket depth.

Soldering/Washing

Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
