Close up of AE420PJD
Datasheet 3D Model

AE420PJD Series

Coupled Inductors for Critical Applications

AE420PJD Series features high inductance, high efficiency and excellent current handling.
  • Only 1.0 mm high and 5 mm square.
  • Ideal for use in flyback, multi-output buck, SEPIC and Zeta applications.
  • Can also be used as two single inductors connected in series or parallel or as a common mode choke.
  • Passes NASA low outgassing specifications.
  • Tin-lead (63/37) terminations. Other terminations available at additional cost.

Looking for the commercial version of this part? See Coilcraft LPD5010 Series
Request Quote:
Find my part
;

Specifications

Electrical specifications at 25°C.

For Flyback Applications

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR max (Ω) 3 Isolation
Voltage (V) 		Leakage
Inductance (µH) 5
AE420PJD102MPZ 1.0 0.10 100 0.090
AE420PJD152MPZ 1.5 0.15 100 0.090
AE420PJD222MPZ 2.2 0.20 100 0.11
AE420PJD332MPZ 3.3 0.27 100 0.13
AE420PJD472MPZ 4.7 0.40 100 0.15
AE420PJD562MPZ 5.6 0.45 100 0.16
AE420PJD682MPZ 6.8 0.53 100 0.19
AE420PJD822MPZ 8.2 0.70 100 0.22
AE420PJD103MPZ 10 0.78 100 0.27
AE420PJD153MPZ 15 1.2 100 0.34
AE420PJD223MPZ 22 1.6 100 0.40
AE420PJD333MPZ 33 2.5 100 0.48
AE420PJD473MPZ 47 3.5 100 0.63
AE420PJD683MPZ 68 5.1 100 0.90
AE420PJD104MPZ 100 8.0 100 1.4
AE420PJD154MPZ 150 11.7 100 2.1
AE420PJD224MPZ 220 15.2 100 3.0

For SEPIC Applications

Part number 1 Inductance (µH) 2
(Tolerance: ±20%) 		DCR max (Ω) 3 SRF Typ (MHz) 4 Coupling coefficient Leakage
Inductance (µH) 5 		Isat (A) 6 Irms (A)
10% drop 20% drop 30% drop both windings 7 one winding 8
AE420PJD102MPZ 1.0 0.10 150 0.95 0.090 2.1 2.1 2.2 1.50 2.12
AE420PJD152MPZ 1.5 0.15 134 0.97 0.090 1.7 1.8 1.8 1.20 1.70
AE420PJD222MPZ 2.2 0.20 108 0.97 0.11 1.5 1.6 1.6 1.10 1.56
AE420PJD332MPZ 3.3 0.27 83.0 0.98 0.13 1.2 1.3 1.3 0.95 1.34
AE420PJD472MPZ 4.7 0.40 68.0 0.98 0.15 0.98 1.0 1.1 0.75 1.06
AE420PJD562MPZ 5.6 0.45 60.0 0.99 0.16 0.90 0.93 0.94 0.70 0.99
AE420PJD682MPZ 6.8 0.53 55.0 0.99 0.19 0.83 0.86 0.87 0.60 0.85
AE420PJD822MPZ 8.2 0.70 50.0 0.99 0.22 0.74 0.77 0.78 0.50 0.71
AE420PJD103MPZ 10 0.78 46.0 0.99 0.27 0.67 0.69 0.70 0.50 0.71
AE420PJD153MPZ 15 1.2 33.0 0.99 0.34 0.53 0.55 0.56 0.42 0.59
AE420PJD223MPZ 22 1.6 26.0 0.99 0.40 0.45 0.47 0.48 0.35 0.49
AE420PJD333MPZ 33 2.5 23.0 0.99 0.48 0.37 0.38 0.39 0.30 0.42
AE420PJD473MPZ 47 3.5 17.0 0.99 0.63 0.31 0.32 0.33 0.25 0.35
AE420PJD683MPZ 68 5.1 14.9 0.99 0.90 0.25 0.26 0.27 0.19 0.26
AE420PJD104MPZ 100 8.0 11.2 0.99 1.4 0.21 0.22 0.22 0.15 0.21
AE420PJD154MPZ 150 11.7 9.9 0.99 2.1 0.17 0.17 0.18 0.12 0.16
AE420PJD224MPZ 220 15.2 8.1 0.99 3.0 0.14 0.15 0.15 0.11 0.15
Notes
  1. Please specify termination and screening codes: e.g. AE420PJD224MPZ.
  2. Inductance shown for each winding, measured at 100 kHz, 0.1 Vrms, 0 Adc on an Agilent/HP 4284A LCR meter or equivalent. When leads are connected in parallel, inductance is the same value. When leads are connected in series, inductance is four times the value.
  3. DCR is for each winding. When leads are connected in parallel, DCR is half the value. When leads are connected in series, DCR is twice the value.
  4. SRF measured using an Agilent/HP 4191A or equivalent. When leads are connected in parallel, SRF is the same value.
  5. Leakage Inductance is for L1 and is measured with L2 shorted.
  6. DC current at 25°C that causes the specified inductance drop from its value without current. It is the sum of the current flowing in both windings.
  7. Equal current when applied to each winding simultaneously that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
  8. Maximum current when applied to one winding that causes a 40°C temperature rise from 25°C ambient. This information is for reference only and does not represent absolute maximum ratings.
Coupled Inductor Core and Winding Loss Calculator
This web-based utility allows you to enter frequency, peak-to-peak (ripple) current, and Irms current to predict temperature rise and overall losses, including core loss. Go to online calculator.

Refer to Doc 639 “Selecting Coupled Inductors for SEPIC Applications.”

Screening:

  • Z = Unscreened
  • Y = Unscreened (SLDC Option A)
  • W = Unscreened (SLDC Option B)
  • H = Coilcraft CP-SA-10001 Group A
  • G = Coilcraft CP-SA-10001 Group A (SLDC Option A)
  • D = Coilcraft CP-SA-10001 Group A (SLDC Option B)
  • 1 = EEE-INST-002 (Family 1) Level 1
  • 2 = EEE-INST-002 (Family 1) Level 2
  • 3 = EEE-INST-002 (Family 1) Level 3
  • 4 = MIL-STD-981 (Family 04) Class B
  • 5 = MIL-STD-981 (Family 04) Class S
  • F = ESCC3201 (F4 operational life performed at 105°C)
  • Screening performed to the document’s latest revision.
  • Lot qualification (Group B) available.
  • Testing T and U have been replaced with more detailed codes 4, 5, and 1, 2, 3, respectively. Codes T and U can still be used, if necessary. Custom testing also available.
  • Country of origin restrictions available; prefix options G or F.
Environmental
Ambient temperature range:
–55°C to +105°C with Irms current.
Storage temperature range:
Component: –55°C to +155°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+155°C (ambient + temp rise).
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
See FIT/MTBF Calculations

Performance curves

Typical L vs Current

Typical L vs Current

Typical L vs Frequency

Typical L vs Frequency

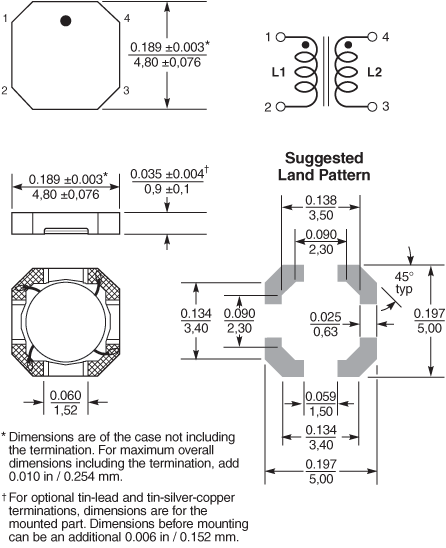

Schematics


Physical characteristics


General specification

Core Material:
Ferrite
Weight:
77 – 88 mg
Packaging:
1000/7′′ reel; Plastic tape: 12 mm wide, 0.3 mm thick, 8 mm pocket spacing, 1.02 mm pocket depth.
Winding to Winding Isolation:
100 Vrms, one minute

Soldering/Washing

Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
Recommended Pick & Place Nozzle:
OD: 5 mm; ID: ≤ 2.5 mm
PCB Washing:
Tested with pure water or alcohol only. For other solvents, see Doc787_PCB_Washing.pdf.
