Specifications
Electrical specifications at 25°C.
| Part number 1 |
Inductance (µH)
2
(Tolerance: ±30%) |
Irms (mA) 3 | DCR max (Ω) 4 |
Isolation Voltage (Vrms) 5 |
|---|---|---|---|---|
| ST420FRC513NRZ | 51 | 200 | 1.35 | 250 |
Notes
- When ordering, please specify termination code: e.g. ST420FRC104NRZ.
- Inductance is per winding, measured at 100 kHz, 0.1 Vrms, 0 Adc using an Agilent/ HP 4263B LCR meter and a Coilcraft CCF 1113 fixture.
- Current per winding that causes a 25°C rise from +125°C ambient.
- DCR is specified per winding, measured at on a Keithley 580 microohmmeter and a Coilcraft CCF 858 fixture.
- Winding to winding isolation (hipot) tested for one minute.
Termination:
- R = Matte tin over nickel over silver-platinum glass frit.
- P = Tin-lead (63/37) over tin over nickel over silver-platinum-glass frit.
- Q = Tin-silver-copper (95.5/4/0.5) over tin over nickel over silver-platinum-glass frit.
Environmental
Ambient temperature range:
–40°C to +125°C with Irms current.
Storage temperature range:
Component: –55°C to +150°C.
Tape and reel packaging: –55°C to +80°C.
Tape and reel packaging: –55°C to +80°C.
Maximum part temperature:
+150°C
Failures in Time (FIT) / Mean Time Between Failures (MTBF):
Performance curves

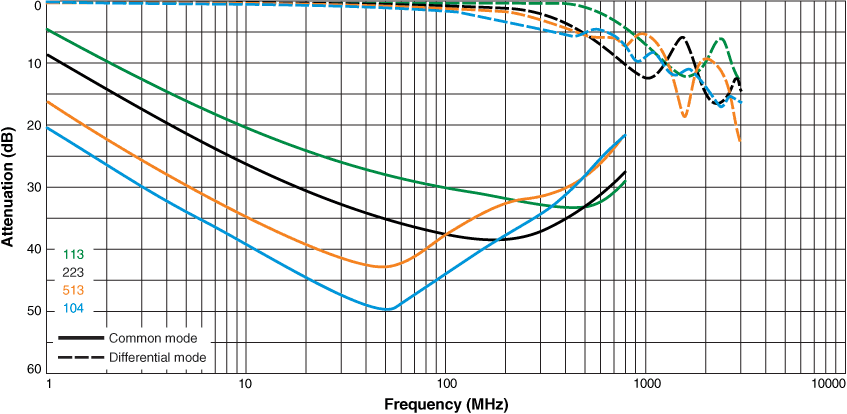

Typical Attenuation vs Frequency

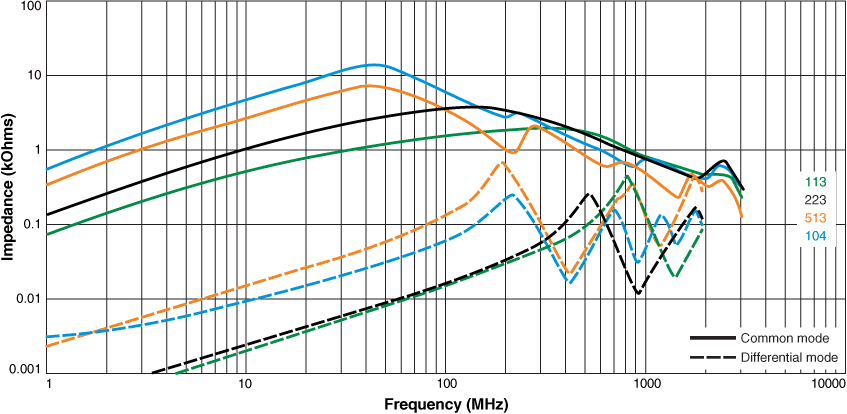

Typical Impedance vs Frequency

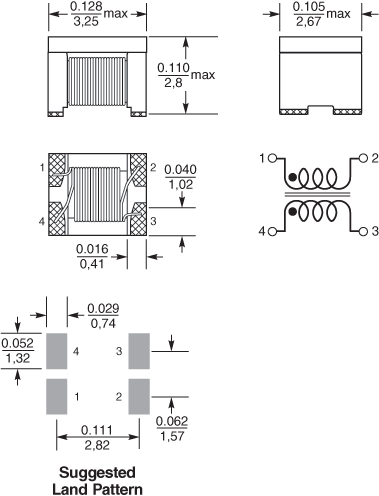

General specification
Core Material:
Ferrite
Weight:
100 – 120 mg
Packaging:
750/7″ reel; 3000/13″ reel; Plastic tape: 12 mm wide, 0.25 mm thick, 8 mm pocket spacing, 2.72 mm pocket depth
Winding to Winding Isolation:
250 Vrms
Soldering/Washing
Moisture Sensitivity Level (MSL):
1 (unlimited floor life at <30°C / 85% relative humidity).
Resistance to soldering heat:
Max three 40 second reflows at +260°C, parts cooled to room temperature between cycles.
Refer to Soldering Coilcraft Components before soldering.
PCB Washing:
Tested to MIL-STD-202 Method 215 plus an additional aqueous wash. See Doc787_PCB_Washing.pdf.
